TinySurveyor Plotter

The Ultimate High Precision Pre-Marking Robot

The Ultimate High Precision
Pre-Marking Robot

Compact & Easy

The TinySurveyor Plotter is designed for pre-marking on even surfaces such as new concrete layers in road construction.

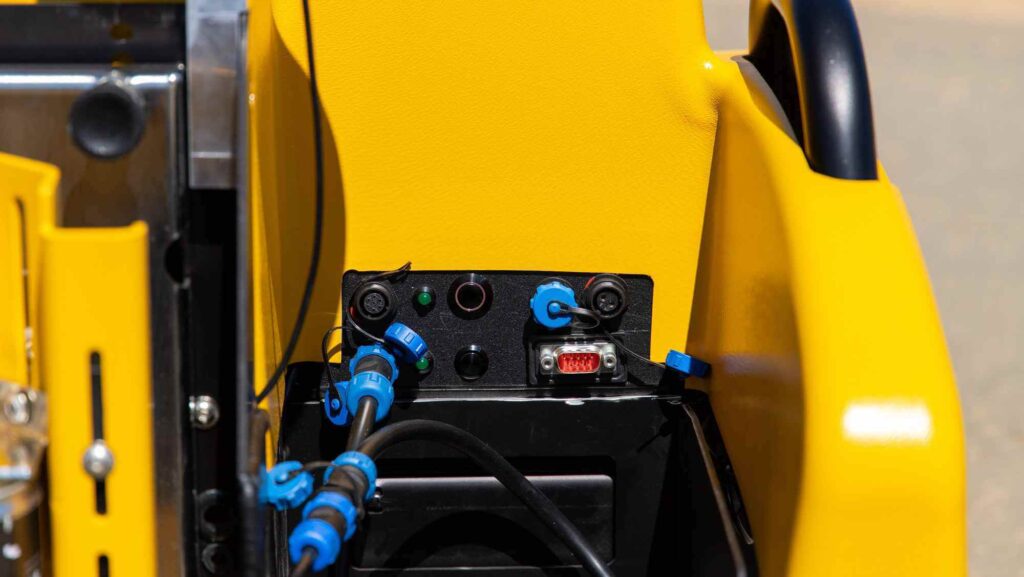

USB port, RS232 port & 12V outlet

Stake out up to 600 points per hour

Obstacle detection & high-visilibity beacon

Accuracy within 1-2 cm / 0.4-0.8 inches

Operation for 8 hours on one battery charge

10x faster than traditional methods

The compact design makes it easy to transport and deploy.

The high-visibility safety beacon and ultrasound sensors allow the robot to operate safely in spaces with live traffic or other equipment.

Watch the TinySurveyor Plotter in action

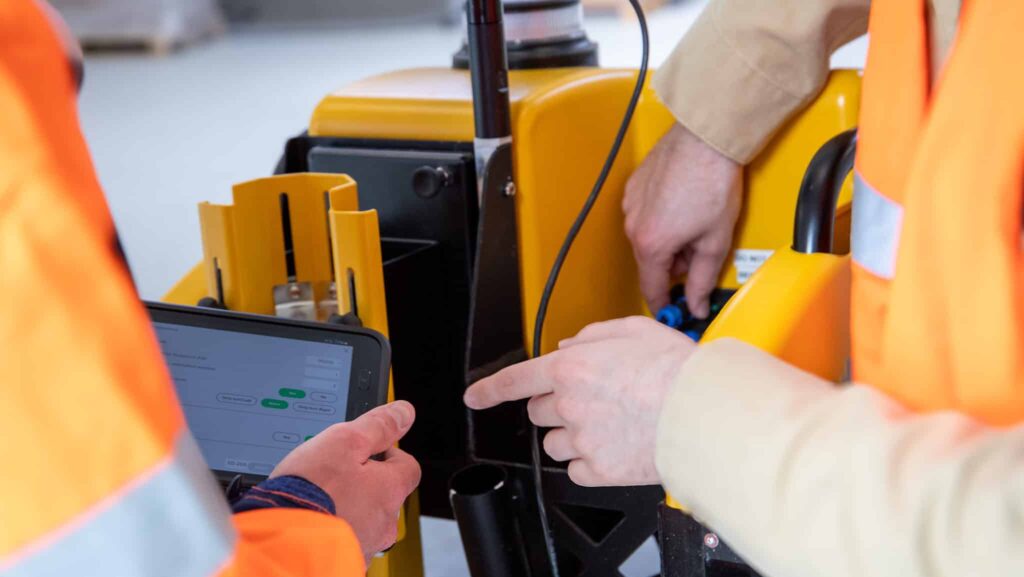

Tablet & Integrated App Gives Full Control

With the included tablet, the operator can exercise complete command over the robot and modify the specific job parameters. This includes the ability to personalize marking preferences, apply projection adjustments, and regulate robot speed.

Additionally, CSV and DXF files can be sent directly to the TinySurveyor Plotter from the tablet, enabling operators to begin their work just minutes after arriving at the site.

Increased Safety

The TinySurveyor Plotter comes with enhanced features such as obstacle detection, a high-visibility beacon and a fit-a-flag option.

Designed for Accuracy

The robot plotter can pre-mark between 5 to 10 times faster than traditional methods with an accuracy of 1-2cm/0.4-0.8”.

What would have taken five weeks, this little robot has done in one week.

It makes life easier! I personally went down and did about 2.5km (1.5 miles) for the railway line, half of that was on an arc, so marks every 3m (9.8 feet) and that would have taken at least 10 hours in the field but with the TinySurveyor it took 2.5 hours.

We’re pretty happy with it and it’s made our job a lot easier, especially with road construction, it’s met all expectations that I’ve had for the machine.
